High-Speed/High-Pressure Injection Model

HSP180EH2
    Product Name : High-Speed/High-Pressure Injection Model
    Product No : HSP180EH2
    Product Description

    Control by a new ultrafast hydraulic servo system achieves improved injection velocity follow-up performance and injection pressure falling response after V-P switching.

    Inquiry
    Product Introduction

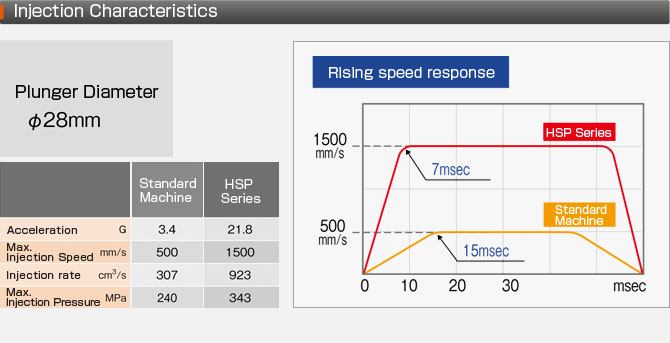

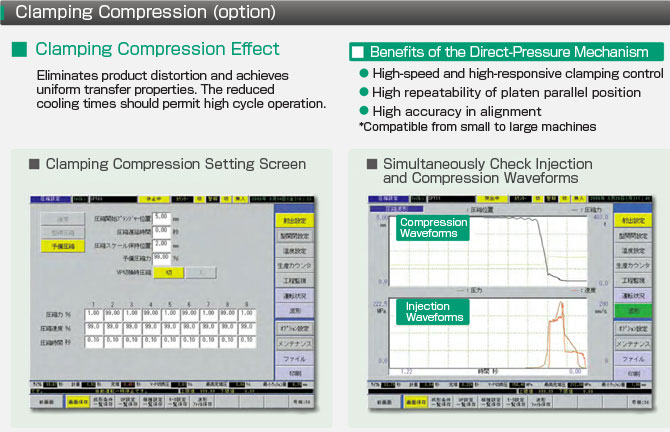

    Main Features

    proimages/product/01/01-1/01-1-1/HSP180EH2-4.jpg

    proimages/product/01/01-1/01-1-1/HSP180EH2-5.jpg

    Product Specifications

      HSP180EH2/HSP220EH2
    Max. clamping force(kN) 1764(2156)
    Min./max. mold thickness(mm) 250/600
    Daylight(mm) 900
    Tie-bar spacingH x V(mm) 560×560
    Screw diameter(mm) 28
    Plunger diameter(mm) 28
    Theoretical injection volume(cm3) 61.5
    Max. injection pressure(MPa) 420
    Max. injection speed(mm/s) 1000
    Machine weight(kg) 8000
    Machine sizeL×W×H(mm) 6405×1465×1933
