Ultra-High Response Injection Model

LP10EH2
    Product Name : Ultra-High Response Injection Model
    Product No : LP10EH2
    Product Description

    The LP Series has been released as the successor to the LD Series for small precision molding machines. The range of molded items has been increased and thus we saw the increase on the machines' utilization rate. The injection response speed represents the top injection response performance in the industry.

    Inquiry
    Product Introduction

    Main Features

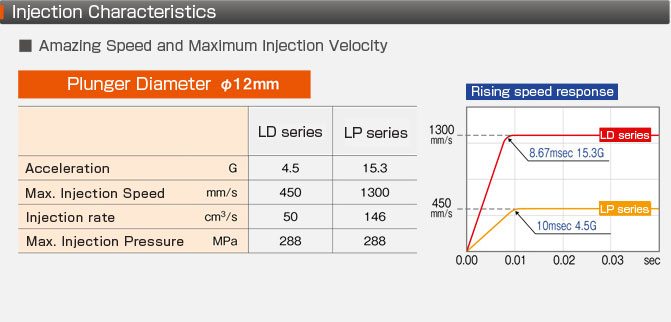

    proimages/product/01/01-1/01-1-1/LP10EH2-5.jpg

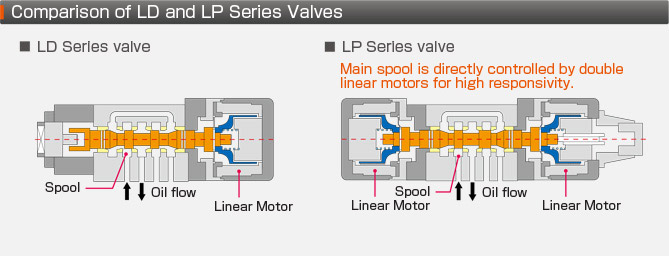

    proimages/product/01/01-1/01-1-1/LP10EH2-6.jpg

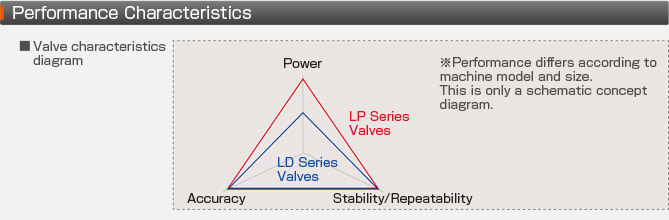

    proimages/product/01/01-1/01-1-1/LP10EH2-7.jpg

    Product Specifications

      LP10EH2LP20EH3
    Max. clamping force(kN) 98 196
    Min./max. mold thickness(mm) 120/- 150/-
    Daylight(mm) 300 400
    Tie-bar spacingH x V(mm) 170×170 310×260
    Screw diameter(mm) 14 18 14 18
    Plunger diameter(mm) 8 12 12 16
    Theoretical injection volume(cm3) 2 4.5 4.5 14.1
    Max. injection pressure(MPa) 197 288 288 262
    Max. injection speed(mm/s) 1500 1300 1300 800
    Machine weight(kg) 1000 2100
    Machine sizeL×W×H(mm) 2000×650×1504 2629×925×1681
