  6. TR10EH2

Standard Injection Model

TR10EH2
    Product Name : Standard Injection Model
    Product No : TR10EH2
    Product Description

    High-Performance Horizontal Injection Molding Machine Series

    Well regarded by many customers as a high-performance injection molding machine offering excellent repeatability.

    Inquiry
    Product Introduction

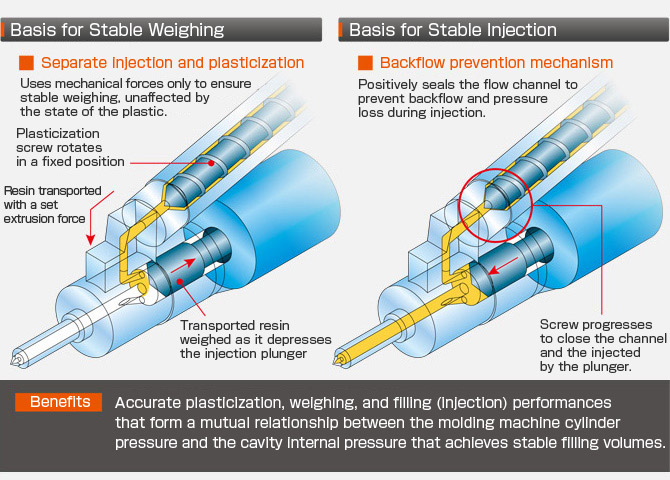

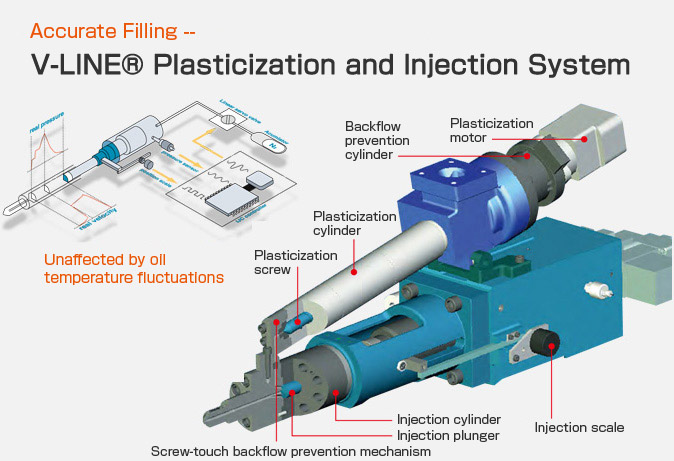

    Features1 V-LINE® Plasticization and Injection System

    proimages/product/01/01-1/01-1-1/TR10EH2-6.jpg

    proimages/product/01/01-1/01-1-1/TR10EH2-7.jpg

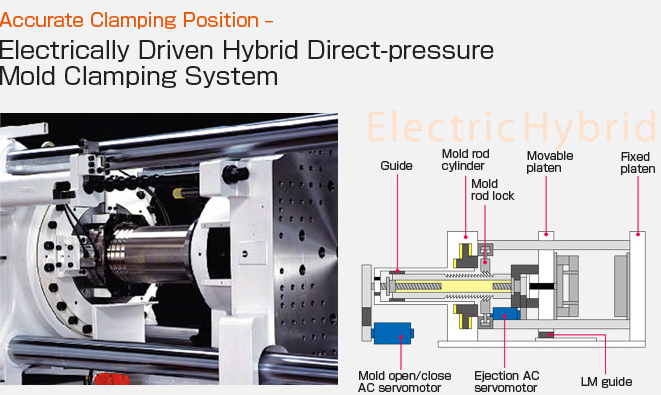

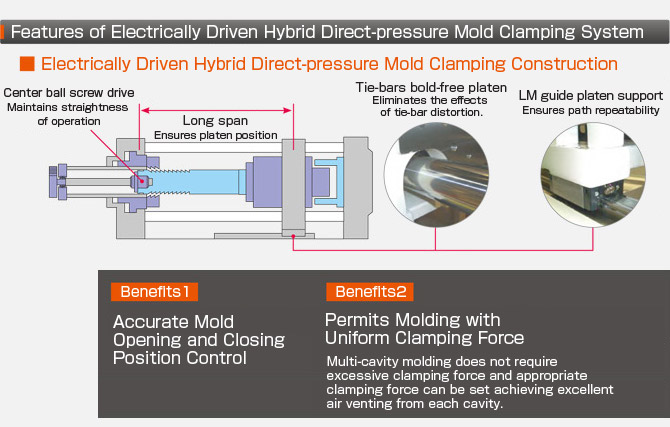

    Features2 Electrically Driven Hybrid Direct-pressure Mold Clamping System

    proimages/product/01/01-1/01-1-1/TR10EH2-8.jpg

    proimages/product/01/01-1/01-1-1/TR10EH2-9.jpg



      TR10EH2TR20EH3
    Max. clamping force(kN) 98 196
    Min./max. mold thickness(mm) 120/- 150/-
    Daylight(mm) 300 400
    Tie-bar spacingH x V(mm) 170 x 170 310 x 260
    Screw diameter(mm) 14 18 14 18
    Plunger diameter(mm) 12 12 16
    Theoretical injection volume(cm3) 4.5 4.5 14
    Max. injection pressure(MPa) 197 288 262
    Max. injection speed(mm/s) 500 500
    Machine weight(kg) 1000 2100
    Machine sizeL×W×H(mm) 2000×650×1495 2629×925×1681



      GL30GL60GL100GL150
    Max. clamping force(kN) 294(392)* 588 980 1472
    Min./max. mold thickness(mm) 150/360 200/390 250/550 250/600
    Daylight(mm) 550 650 800 900
    Tie-bar spacingH x V(mm) 310×310 360×320 460×420 560×520
    Screw diameter(mm) 14 18 22 22 28 28 32 40 28 32 40
    Plunger diameter(mm) 12 16 22 22 28 28 32 40 28 32 40
    Theoretical injection volume(cm3) 4.5 14 27 27 83 83 108 251 83 108 251
    Max. injection pressure(MPa) 288 262 260 260 240 240 220 210 240 220 210
    Max. injection speed(mm/s) 500 500 500 400 300 500 400 300
    Machine weight(kg) 2000 2700 2800 3100 3300 5000 5100
    Machine sizeL×W×H(mm) 3150×
    1030×
    1679    		 3685×
    1094×
    1679    		 4030×
    1196×
    1792    		 4400×
    1378×
    1878



      TR180/220EH2TR260/300EH2TR350/450EH2WTR650EH2
    Max. clamping force(kN) 1764(2156) 2548(2940) 3430(4410) 6374
    Min./max. mold thickness(mm) 300/650 300/700 350/700 650/1210
    Daylight(mm) 950 1200 1050 1550
    Tie-bar spacing(mm) 560×560 610×610 710×710 980×980
    Screw diameter(mm) 40 50 50 50L 50 50L 80
    Plunger diameter(mm) 40 50 50 60 50 60 80
    Theoretical injection volume(cm3) 251 392 392 621 392 621 2000
    Max. injection pressure(MPa) 219.5 219.5 166.6 219.5 166.6 176
    Max. injection speed(mm/s) 300 300 300 300
    Machine weight(kg) 8000 9500 11000 27000
    (Mold clamping parts7000/
    Clamping force parts20000)
    Machine sizeL×W×H(mm) 5200×
    1465×
    1959    		 5165×
    1465×
    1959    		 5788×
    1540×
    2017    		 5925×
    1540×
    2017    		 5370×
    1650×
    2199    		 5504×
    1650×
    2199    		 9180×
    2130×
    2185
