Linear Motor Drive High speed Die-sinker EDM
Product Name : Linear Motor Drive High speed Die-sinker EDM

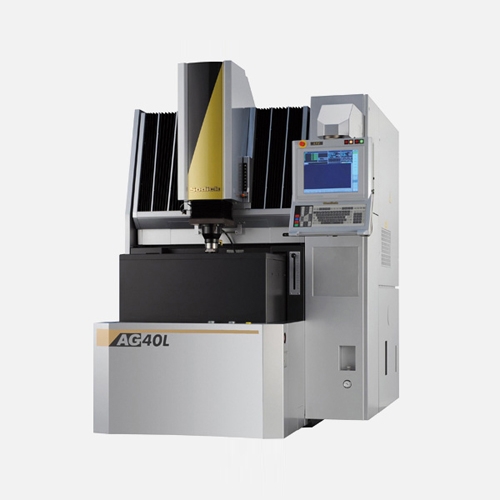

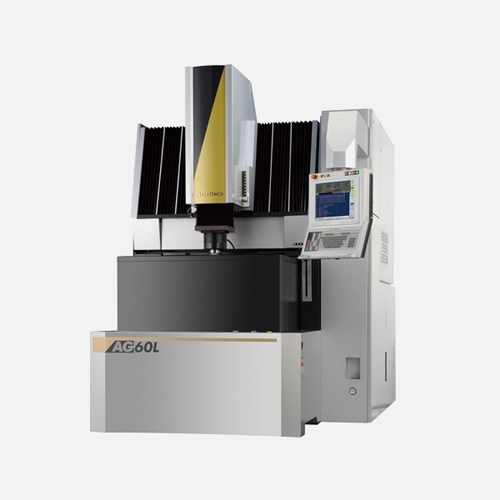

Product No : AG40L-AG60L
Product Description

Best selling Die-sinker EDM which realizes high-speed and high-performance by screw-less drive and arc-less machining

Product Introduction

Main Features

Linear Motor Drive System

Linear motor drive system is the most ideal mechanism which semi-permanently sustains high-speed axis-movements and instantaneous response. With 10-years of history providing linear motor-driven machines, Sodick offers 10-years of positioning accuracy guarantee on its linear motors for the first time ever in EDM industry.

New "LP2" Controller

The 5th generation electrical discharge technology "LP2" has adopted the "Perfect Active Control," enabling simultaneous control of high-speed electrical discharge and axis-movements by using serial communication technology of 1Gbit/sec.

Arc-less & High Quality Surface Finish

The new "Arc-less" electrical discharge system features further improved in machining performance, and ensures great reduction in machining time. Equipped with "SVC" circuit as standard, high-quality surface finishing, satin surface, and mirror surface can be achieved with great ease.

Product Specifications


Axis strokeX x Y x Z (mm) 400×300×270 600×420×370
Max. suspended weight(kg) 50 50
Max. weight of workpiece(kg) 550 1500
Machine tool dimensionsW x D x H (mm) 1550×2440×2330 1740×2785×2570
