Linear Motor Drive Large-Capacity Die-Sinker EDMLinear Motor Drive Large-Capacity Die-Sinker EDM
Product Name : Linear Motor Drive Large-Capacity Die-Sinker EDM
Product No : AQ15L-AQ20L
Product Description

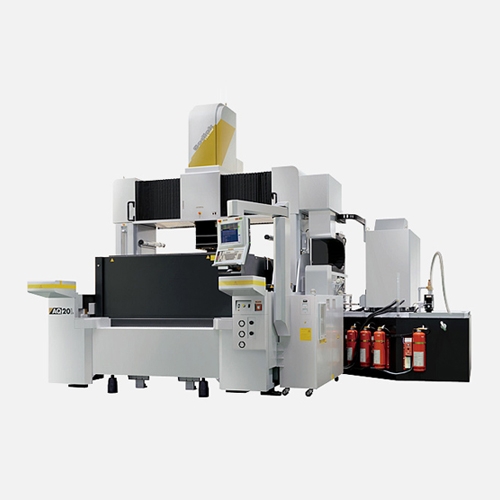

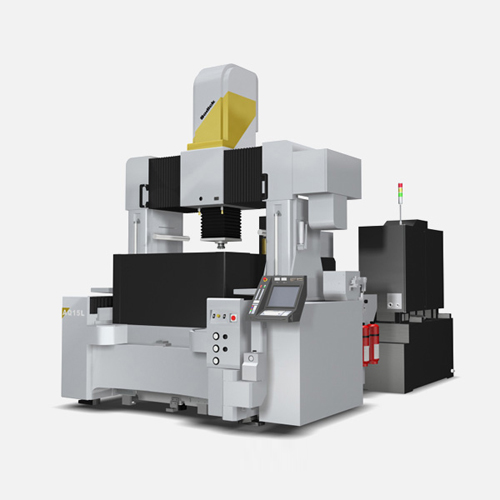

Large-Capacity Die-Sinker EDM with direct-drive system improves production efficiency of large dies for automotive parts and large flat panels

Product Introduction

Main Features


Sodick's direct-drive system employs linear motors and linear scales, resulting in excellent positioning accuracy with maximum acceleration of 1.2G, made possible by high speed servo-jump. Work set-up is simple and expert-level skills are not required, providing a highly user-friendly operation environment.

Unique machine structure

The workpiece set-up table is completely separated from the drive system, thereby achieving mechanical construction that is completely unaffected by the shifting workpiece weight. In addition, the symmetrical gantry construction reduces mechanical displacement, and provides excellent machining stability.

Increase production efficiency

The extra service stroke allows the machining table workspace to be opened up giving greater access to the area for workpiece set-up. To further increase productivity, automatic tool changer (option) can facilitate continuous hours of automated machining, resulting in improved production efficiency and reliability.

Product Specifications

Axis strokeX x Y x Z (mm) 900×1500(+500)×600 1200×2000×600
Max. suspended weight(kg) 100 100
Max. weight of workpiece(kg) 10000 22000
Machine tool dimensionsW x D x H (mm) 3050×5180×4220 3550×5785×4220
