Linear Motor Drive Large-Capacity High Speed Wire-Cut EDM
Product Name : Linear Motor Drive Large-Capacity High Speed Wire-Cut EDM

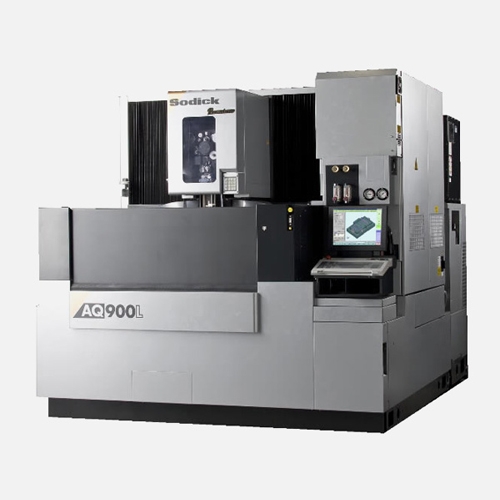

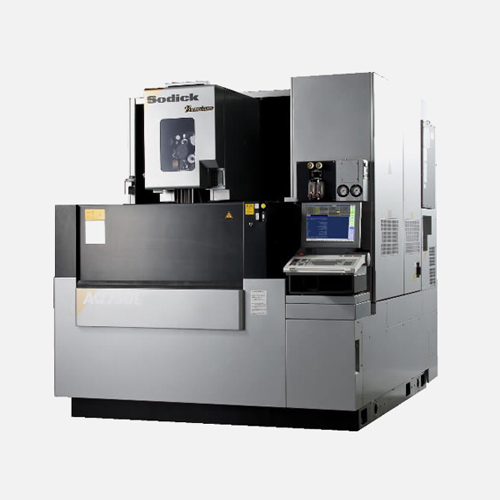

Product No : AQ750L-AQ900L
Product Description

Direct-drive system, new power supply unit, wire feeder, automatic wire threader, and L-Cut Wire Chopper enables continuous automatic machine operation

Product Introduction

Main Features

Direct-drive & Integrated structure

Sodick's direct-drive system uses linear motors and linear scales, and its excellent positioning accuracy never diminishes over time. The machine also employs a unique integrated structure design, offering the world's best-in-class installation space and machining area size.

New power supply unit

The new power supply unit employs Sodick's 5th generation “Perfect Active Control” EDM technology. In addition, the 1GB/sec serial communication data rate makes simultaneous high-speed processing of both discharge control and motion control possible.

Ultra-high speed AWT

The Super Jet AWT (Ultra-high speed Automatic Wire Threader unit) uses the conventional pipe-jet method combined with wire annealing function, greatly expanding the range of wire connection modes to choose from and meets the needs of various applications.

Product Specifications

Axis strokeX x Y x Z (mm) 750×500×400 900×600×400
U x V axis travel(mm) 770×520 920×620
Max. taper angle ±30°
Max. machining sizeW x D x H (mm) 1050×750×400 1200×900×400
Max. weight of workpiece(kg) 1500 2000
Machine tool dimensionsW x D x H (mm) 2100×2800×2350 2380×3150×2395
